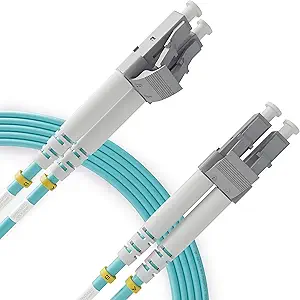

[Review&QnA] LC to LC Fiber Patch Cable Multimode Duplex - 2m (6.56ft) - 50/125um OM3 10G LSZH - Beyondtech PureOptics Cable Series
Electronics > Accessories & Supplies > Audio & Video Accessories > Cables & Interconnects > Audio Cables > Fiber Optic Cables
[Review&QnA] LC to LC Fiber Patch Cable Multimode Duplex - 2m (6.56ft) - 50/125um OM3 10G LSZH - Beyondtech PureOptics Cable Series
About this item
- Beyondtech high-quality laser-optimized 50/125 Multimode LC to LC OM3 Fiber Patch Cable is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
- OM3 Fiber Patch Cable LOMMF connects to 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10Gb networks.
- This OM3 Multimode Fiber Patch Cable conforms to ITU-T G.651.1, TIA/EIA 492AAAC and IEC60793-2-10 A1a.2a standards and complies with all RoHS environmental specifications.
- This LC to LC OM3 fiber patch cable has an aqua color jacket with a 3 mm diameter. OM3 cables have a 1500 MHz-km bandwidth and a 2.3dB/km maximum attenuation at 850 nm light sources. They also have a 500 MHz-km bandwidth and a 0.6dB/km maximum attenuation at a 1300 nm wavelength.
- OM3 fiber patch cords operate at -20°C to +70°C and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
Reviews
★★★★★
Verified Purchase
Quality built and work well.
All 16 connected and work fine in my initial tests. Haven’t checked throughput yet but they are on a storage unit that indicates latency through the switch is ~0.1ms or less. Quality build, fiber casings are a bit thicker than other brands I’ve used. That could mean they are durable but could also affect bulk in tight spots. I’m happy with them.
★★★★★
Verified Purchase
Works perfectly for fiber MADI
This cable works perfectly with the MADI card in my Midas M32 mixing console to a nearby fiber MADI interface.
It seems durable as well but care is still needed when handling it
★★★★★
Verified Purchase
Ussed on a 10Gb connection 5M cable
So far, so good. No errors on the link. The cable is connected to a Mellanox card and a 10Gb D-link switch.
★★★★★
Verified Purchase
Great value, work as expected
Ordered a pair for a 20gig LAG to core switches. Worked perfectly. Great price for the material received.
★★★★★
Verified Purchase
in a pinch and travelling in a place where Fiber is miles away...
I got this at the nick of time and got the customer up and running with 4-600ft fiber runs worked like a charm NO ISSUES and NO CRC's (No mismatches) etc. No Blemishes that were impeding... Good job!
★★★★★
Verified Purchase
Great Fiber for the price
compared online and found this to be the best bang for the buck. Installed these in my fiber channel switches and things are running as smooth as they possibly can.
★★★★★
Verified Purchase
Worked well so far.
Cable's looked and worked just like the more expensive cables I have purchased.
★★★★★
Verified Purchase
Great buy, look great, work great..
I don't know how much better a review can be for a fiber cable. They work great, stand up to careless handling, and deliver the network speeds they're supposed to. I've bought lots of these, and will probably buy many more.
★★★★★
Verified Purchase
works
Product arrived fast, just as advertised.
Connected and working on 10G connection
★★★★★
Verified Purchase
Good networking cables
Great cables; I used these to connect three 8-port POE switches to my primary router. These cables worked very well, and I would consider using similar cables again.
Question & Answer
Question :
Can i use this cable with a sfp glc-sx-mm transceiver?
Answer :
Yes, it will mode since is a multi-mode fiber patch cable.
Question :
Hi guys !! hope you can help me, Is om3 Fiber compatible with om2 ?
Answer :
Hello Orlando.
We can help you with that.
It is tolerable to attach cables, adapters or active equipment that have the same core, Example 50/125 (OM2) active equipment / 50/125 (OM3) patch cables.
Products with different core should not be connected together (They won't work, or have bad performance). You should also remember that, in the same way as with ethernet cabling, when connecting two products with different bandwidth levels the performance that can be expected will be one of the worst performing components. So, if an OM2 patch cord is connected to OM3 equipment, the best performance that can be expected is the one from the OM2. Equally, if an OM3 patch cable is connected to an OM2 component then the performance will still only be that of OM2.
Question :
Can the duplex connector be disassembled into two fibers for pulling?
Answer :
Yes, they can definitely be separated, the cable is ZIPLOCK, so try to first separate the LC Duplex connector, by pulling on one side the connector, this will release the Duplex clip and then you can pull, try to be really careful pulling, if you require 2 simplex cable, we can make them for Custom order at Amazon Business Requests. Thanks.
Beyondtech Sales Team.
Question :
Can the connectors be separated on each end?
Answer :
Hi there!
Yes! In the case of a SC duplex connector you need to remove the conjoined-clip with a small flat screwdriver. At the side you will see a small line where you could push to remove the plactic.
Thanks and have a great day.
Question :
how to identify om3 cable?
Answer :
Hello!, usually they have a Aqua color jacket. If dont want to confuse, you should check our cables, they have a label with an order code, in them: EXAMPLE: BT-FOOM3PC-LCLC-6FT1P BT: Beyondtech: FO: Fiber Optics: OM3: OM3 : PC (Polishing): LC : Connector 1: LC : Connector 2: 6FT: Size: 1P: 1 Pack. Thanks for your question.
Question :
This fiber cable will work with an ubiquiti u fiber multi-mode sfp 10g - uf-mm-10g?
Answer :
Yes, this cable can work in 10 Gb/s since is OM3 "laser-optimized". Thanks and I hope you have a great day.
Beyondtech Sales Team.
Question :
Can these be run on the outside of the house?
Answer :
Hello!
This cables are for indoor use only... we would not recommend giving it an outdoor use.
Beyondtech also provide outdoor cables at custom request through the chat service of amazon or our website.
Thanks,
Beyondtech Customer Service
Question :
is om3 fiber compatible with om1? Txs
Answer :
Most installations are now using 50/125 (OM2, OM3, OM4, OM5) fiber for 1/10/100 Gigabit Ethernet instead of 62.5/125 (OM1) since the laser-optimized 50/125 fiber is a better solution for high speed systems with laser sources and is still compatible with virtually every system that will run on 62.5/125 fiber. One issue created by mixing the use of 50/125 OM3 fiber in locations that also have 62.5/125 OM1 fiber is that it can induce severe losses in links.
Question :
can i use these cables for an ethernet connection?
Answer :
Yes, absolutely. In fact that is what these are primarily used for. Of course you would need a switch with multimode (850nm) optical transceivers to plug into. OM3 can take 10Gb/s up to 300m.
